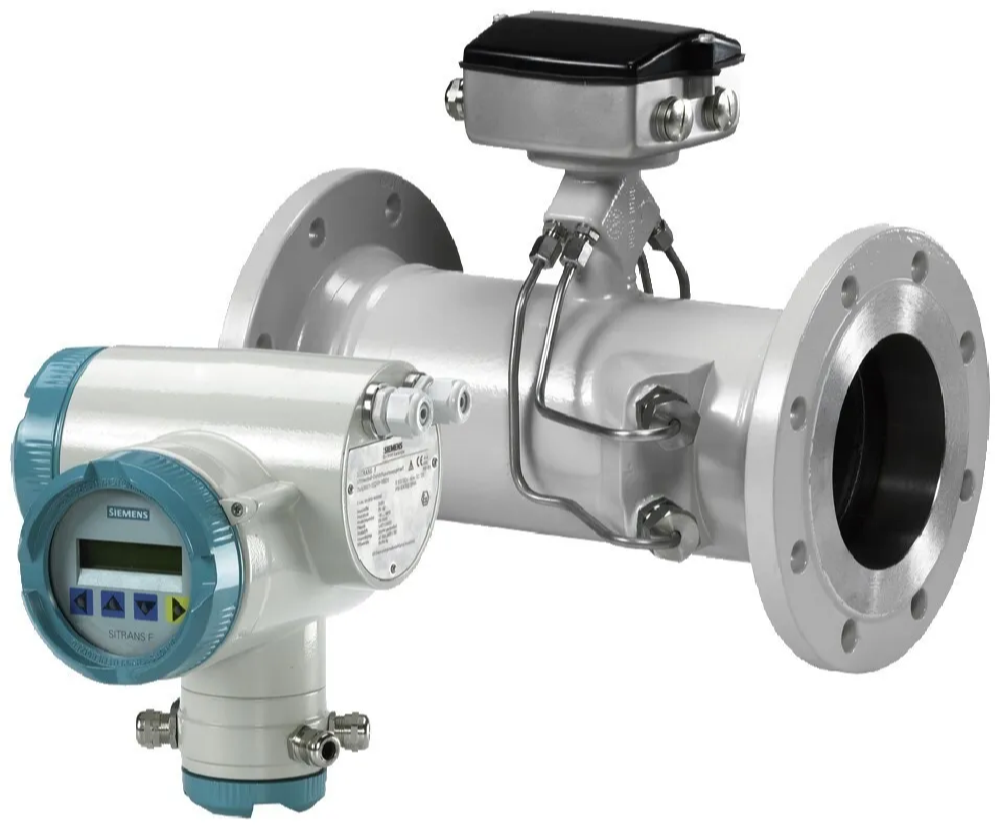

The SITRANS FUS060 transmitter is an ultrasonic flow transmitter designed for high-precision flow measurement.
It operates on the transit-time principle for measuring the flow of liquids.
The transmitter is mainly used with inline ultrasonic sensors such as SONO 3100, SONO 3300, and SONOKIT.
It is suitable for applications like water and wastewater flow measurement.
The device supports 1-path, 2-path, and up to 4-path flow measurement systems.
It provides high accuracy, typically around ±0.5% of the flow rate.
The transmitter features advanced diagnostics and self-monitoring capabilities.
It includes a user-friendly interface with a two-line LCD display and optical keypad.
Communication options include HART, PROFIBUS PA, and SIMATIC PDM integration.
The device offers outputs such as 4–20 mA analog, pulse, frequency, and relay signals.
It allows remote installation up to approximately 120 meters from the sensor.
The transmitter is ATEX certified, making it suitable for hazardous environments.
Its robust design ensures reliable operation and long-term stability.
The unit supports easy configuration through local display or remote communication tools.
Overall, the SITRANS FUS060 provides accurate, efficient, and dependable ultrasonic flow measurement for industrial applications.The Siemens SITRANS FUS060 is a high-performance transit-time ultrasonic flow transmitter designed for 1- or 2-path sensors (SONOKIT, SONO 3300, SONO 3100) up to DN 5000. It offers superior signal resolution for high turndown ratios and accurate volume measurement in water, waste water, and industrial liquid applications, featuring easy menu-based configuration and remote installation up to 120m from the sensor.
Material Stainless Steel
Brand Siemens
Application Media Any Liquid
Usage/Application Automotive
Model Name/Number SITRANS FUS060
Power Supply 24V AC/DC , 115/230V AC
Accuracy +- 0.5% of flow rate
Electronics Enclosure IP65 (NEMA 4)
Analog Output 1 analog, 1 pulse, 1 relay
Operating Pressure 20 to 50 Degree C
