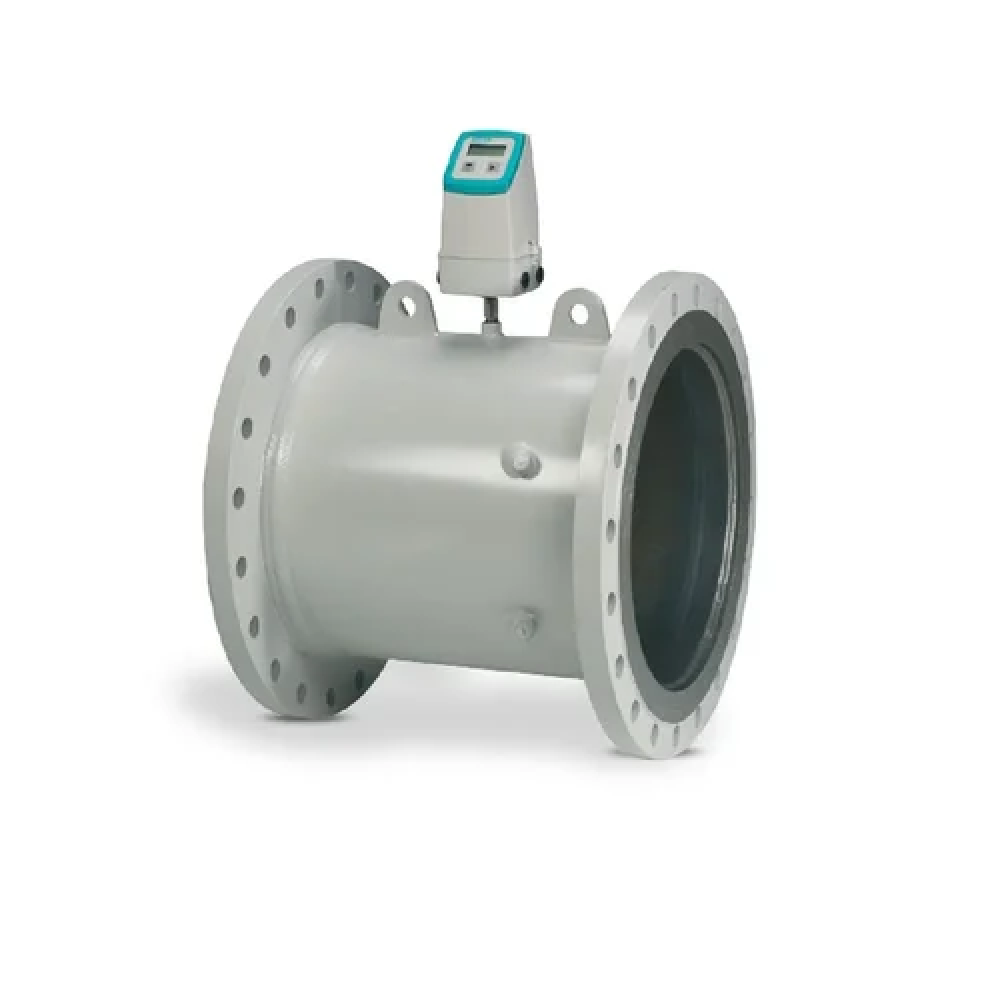

The SITRANS FUE380 is an inline ultrasonic flowmeter designed for precise water flow measurement.
It is the custody-transfer approved version of the SITRANS FUS380, ensuring verified and secure measurements.
The meter operates using a transit-time ultrasonic principle for accurate flow detection.
It is mainly used in district heating, cooling systems, and energy metering applications.
The device can be integrated into energy meter systems along with temperature sensors and calculators.
It features a 2-path measurement design, improving accuracy even under difficult flow conditions.
The flowmeter provides high accuracy and long-term measurement stability.
It is suitable for water and glycol-based liquids in industrial and utility applications.
The system includes a sensor, transducers, and a transmitter such as SITRANS FUE080.
It supports both battery-powered and mains-powered operation for flexibility.
The device has a built-in display for flow values, totals, and diagnostic information.
Communication features include optical IrDA and optional RS232/RS485 with Modbus protocol.
The meter is certified according to international standards such as MID, EN 1434, and OIML R75.
It offers no pressure loss, as the measurement is non-intrusive.
Overall, the SITRANS FUE380 provides reliable, accurate, and secure flow measurement for energy and water applications.
The SITRANS FUE380 is a 2-track ultrasonic flowmeter designed for custody transfer (heating/cooling) in district heating networks, with approvals including EN 1434, OIML R75, and MID class 2. It provides precise, low-pressure-drop measurement for water in DN 100 to DN 800 pipes, featuring long-term stability and >6-year battery life
series MAG 6000
Meter Technology Electromagnetic
Fluid Type Chemicals, Wastewater, Water
Usage/Application Industrial
Model Name/Number SITRANS FUE380
Line Size 200 mm
Output Signal Pulse, 4–20 mA
Material Carbon steel Bronze
Power Supply 85–265 V AC
Accuracy 0.5% of flow rat
The 2-track SITRANS FUE380 is the custody transfer approved version of SITRANS FUS380. It can be verified and sealed for use in various countries. The battery or mains supply powered SITRANS FUE380 has a display that indicates various measurement values and diagnostics. In addition, it features an IrDA optical interface for communication with SIMATIC PDM used for data transfer.
