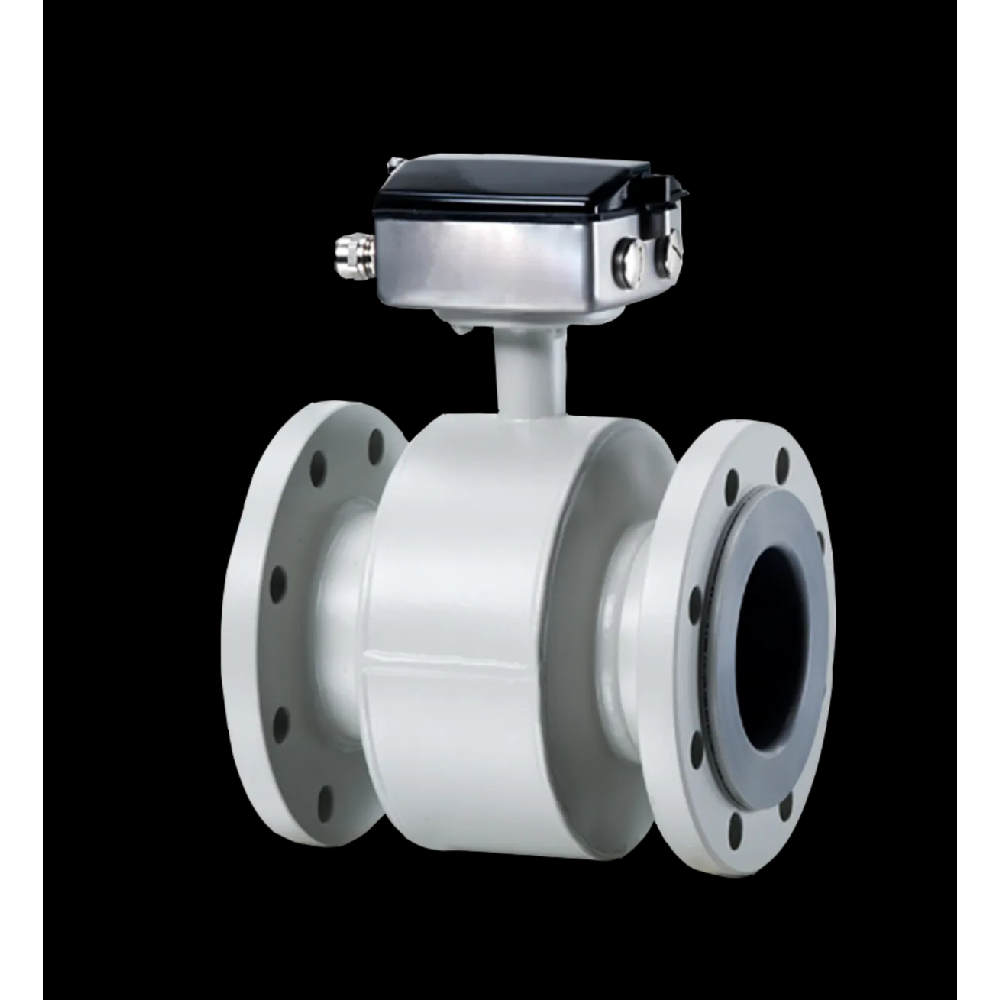

The SITRANS FM MAG 3100 P Sensor is a specialized electromagnetic flow sensor widely used in chemical and process industries. Here is a clear 10-line description:
The SITRANS FM MAG 3100 P is an electromagnetic flow sensor designed for measuring conductive liquids.
It operates based on Faraday’s Law of Electromagnetic Induction, converting flow velocity into an electrical signal.
The sensor is specifically built for aggressive and corrosive media in chemical industries.
It features PTFE or PFA liners and Hastelloy electrodes for excellent chemical resistance.
The fully welded construction ensures high durability and reliability in harsh environments.
It supports accurate flow measurement with high precision up to about 0.2%.
The sensor can operate at temperatures up to around 150°C and high pressure conditions.
It is compatible with MAG 5000 and MAG 6000 transmitters for complete flow measurement systems.
The device includes features like SensorProm technology for easy configuration and maintenance.
Overall, it provides reliable, accurate, and long-lasting flow measurement in demanding industrial applications.The SITRANS FM MAG 3100 P is a specialized electromagnetic flow sensor designed for the process industry, particularly chemicals and high-temperature applications. It features a rugged, fully welded stainless steel or carbon steel construction, with durable liners (PTFE/PFA) and a “hot swappable“ design. It typically operates with MAG 5000/6000 transmitters,
Measurement Principle: Electromagnetic Induction.
Nominal Size: DN 15 to DN 300
Electrode Materials: Hastelloy C, Platinum, or Tantalum.
Process Connections: Flanges EN 1092-1 PN 10-40, ANSI B16.5 Class 150/300.
Pressure Rating: Up to PN 40 (ANSI Class 300).
of flow rate (combined with MAG 6000 transmitter).
Transmitter Compatibility: Compatible with MAG 5000 and MAG 6000 transmitters (remote or compact).
Material Certification: Fully welded construction with Hastelloy C electrodes standard for chemical resistance.
Liner Material PTFE
Flow range 5 to 50 m/s
Type Air Flow Sensor
Electrode Material SS316
Output type 4 to 20 mA, Pulse, CAN, Modbus
Line Size 300 mm
Sensor type Electromagnetic Flow Meter
Application Automobile
Fluid Type Wastewater, Acids, Water, Alkali, Chemicals
Brand SITRANS
Benefits
Fully welded construction that is extremely rugged and can withstand special process conditions using extreme measurement electrodes
Integrated grounding electrodes - no grounding rings required for many applications
Short delivery time due to standardized warehousing
Temperature resistant up to 302 °F
Approved for use in potentially explosive atmospheres
SITRANS FM portfolio - our integrated platform enables flexible use of the MAG 5000 / 6000 transmitter for all products (MAG 5100 / 3100/1100):
Unique SensorProm technology - stores critical, sensor-specific data and passes it to the transmitter. This allows a simple, flexible commissioning of the sensor.
Plug & Play - allows easy on-site replacement and commissioning of the transmitter in just minutes
“Hot swapable“ - exchangeable during operation
Mounting flexibility - compact or separate installation possible
Validated calibration ensures accurate flow measurement. Each Siemens flowmeter is calibrated in facilities that are individually accredited to ISO / IEC 17025.
Service and diagnostics - designed for MAG on-site verification with traceable certification. Regular calibration of the SITRANS FM Verificator ensures accuracy in the field.
