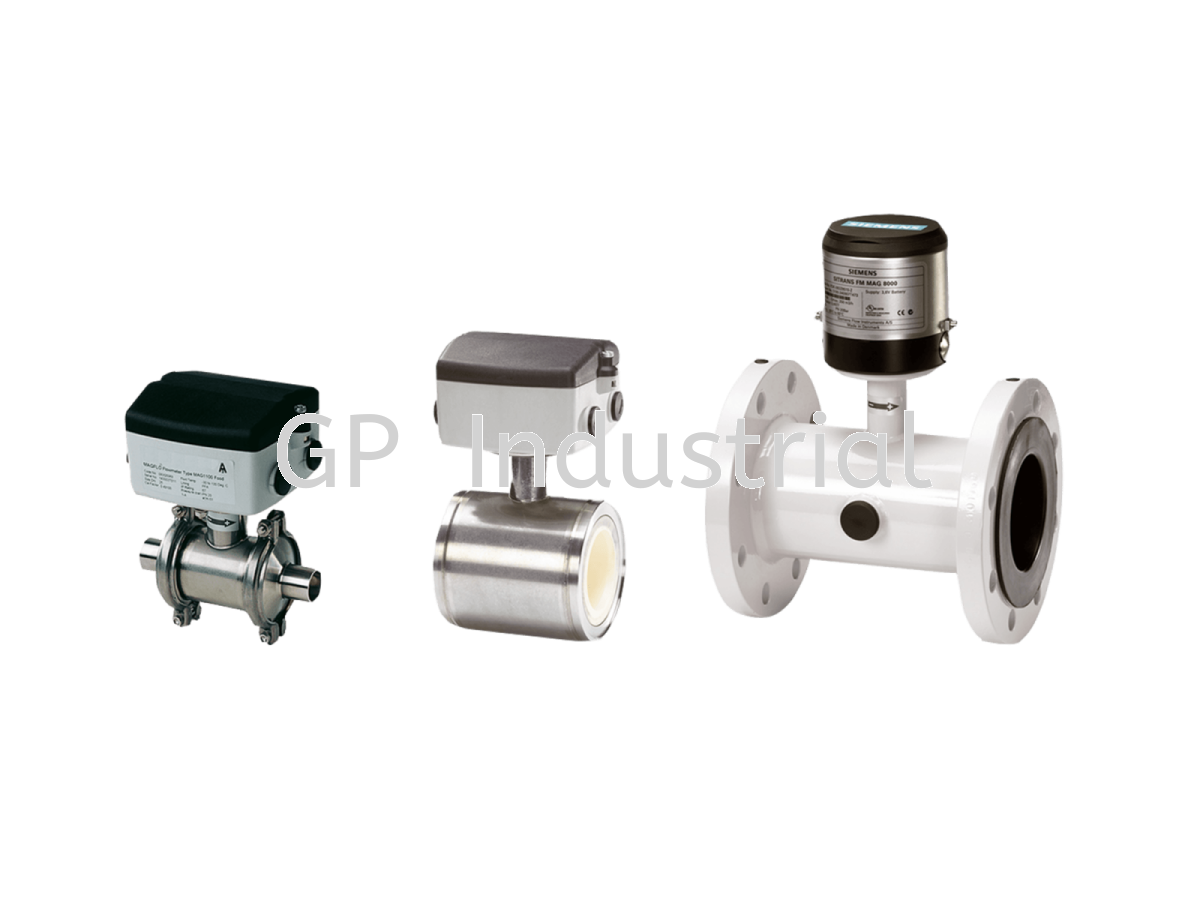

The SITRANS FM MAG 1100 F Sensor is a high-performance electromagnetic flow sensor designed for hygienic applications.
It is specifically developed for industries such as food, beverage, and pharmaceuticals.
The sensor operates based on Faraday’s law of electromagnetic induction for accurate flow measurement.
It features a sanitary design suitable for CIP (clean-in-place) and SIP (sterilize-in-place) processes.
The device supports flexible process connections for easy integration into hygienic systems.
It is equipped with SENSORPROM technology for automatic data storage and quick commissioning.
The sensor is available in compact or remote installation configurations.The Siemens SITRANS F M MAG 1100 F is a specialized electromagnetic flow sensor for sanitary applications in food, beverage, and pharmaceutical industries, available in DN 10 to DN 100 It features a stainless steel AISI 316 housing, hygienic clamp/weld connections, and 3A/EHEDG certification for CIP/SIP cleaning, combined with PFA or ceramic liners for high resistance.
Its stainless steel (AISI 316) construction ensures durability and corrosion resistance.
The MAG 1100 F provides reliable and precise flow measurement with factory calibration.
It allows easy maintenance and verification directly at the installation site.
Overall, it is a robust and hygienic solution for critical flow measurement applications.
Medium Liquid
Flow range 10 to 100 m3/hr
Output type Relay, 4 to 20 mA, Pulse, RS485
Application Industrial
Sensor type Magnetic
Line size 6 inch
Brand Sitrans
Supply Voltage 18 to 30 V DC
Operational Mode Bidirectional
Temperature range 0 to 150 °C
SITRANS FM MAG 1100 F Sensor (Siemens) — Industrial Overview
The SITRANS FM MAG 1100 F Sensor is a high-end industrial electromagnetic flow sensor, mainly used in hygienic industries like food, beverage, and pharmaceuticals.
🔍 What this product actually is
It is a flow sensor (not a temperature sensor)
Measures flow of conductive liquids using electromagnetic principle
Works based on Faraday’s Law of Electromagnetic Induction
Typically paired with a transmitter (MAG 5000 / 6000) to form a complete system
Measurement Principle: Electromagnetic flow measurement based on Faraday’s Law
Nominal Diameter Range: DN 10 to DN 100 (3/8“ to 4“)
Accuracy: Up to ±0.2% of measured value
Process Temperature Range: –20°C to +150°C (suitable for CIP/SIP)
Process Pressure Rating: Up to 40 bar
Liner Material: PFA (food-grade, hygienic compliant)
Electrode Material: Stainless steel (AISI 316L) or optional alloys
Enclosure Protection: IP67 / IP68 (depending on installation)
Electrical Conductivity Requirement: ≥ 5 µS/cm
Communication Compatibility: Works with transmitters (MAG 5000/6000) supporting HART, PROFIBUS, MODBUS
