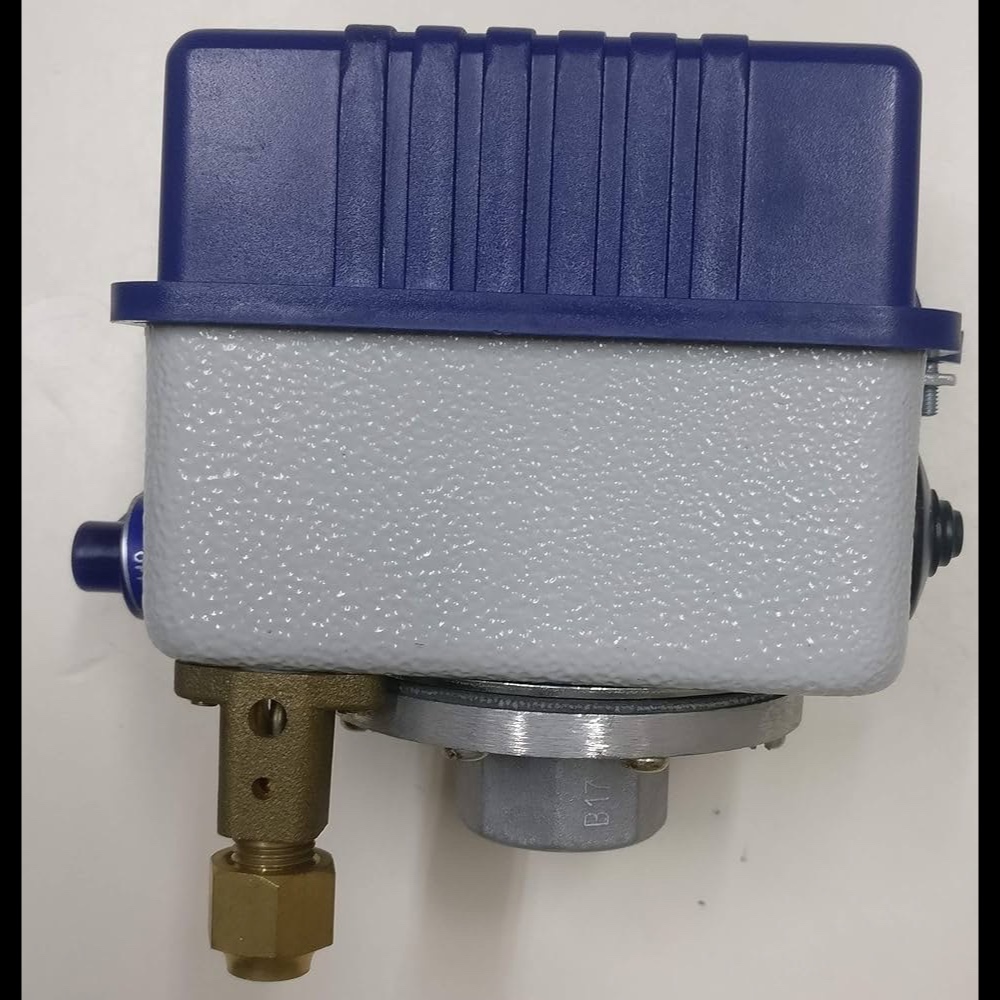

The WIKA Model PSM-530 is a robust mechanical pressure switch designed for automatic ON/OFF control of pumps and air compressors, featuring a diaphragm sensor for regulating 3-phase motors (via TPST contact).The PSM-530 mechanical pressure switch from WIKA is a robust device designed for precise pressure monitoring and control.
It operates using a mechanical sensing element such as a diaphragm or piston.
The switch activates electrical contacts when the set pressure point is reached.
It is suitable for use with gases and liquids in industrial environments.
The PSM-530 is known for its high repeatability and reliable switching performance.
It features adjustable switching points for flexible application needs.
The device is built to withstand harsh conditions like vibration and temperature variations.
It is commonly used in pumps, compressors, and hydraulic systems.
The compact design allows easy installation and maintenance.
Overall, the PSM-530 offers durable and efficient pressure control for critical applications.
Pressure Range 10 Bar
Pressure Switch Type Pneumatic Pressure Switch
Media Water, Refrigerant, Air
Contact Type SPDT
Contact Material Silver
Switch Type Mechanical
Setpoint Type Adjustable Screw
Enclosure Rating IP54
IP Rating Ingress protection IP44
MODEL PSM-530 PRESSURE SWITCHES ARE ESSENTIALLY
DESIGNED FOR ON-OFF PRESSURE CONTROL APPLICATIONS SUCH AS
AIR COMPRESSORS OR WATER PUMPS TO CONTROL THEIR WORKING
BETWEEN THE MINIMUM AND MAXIMUM SETTING VALUES. AT THE
MAXIMUM SETTING VALUE, PRESSURE SWITCH CONTACTS OPEN AND
STOPS THE MOTOR. AT THE MINIMUM VALUE, PRESSURE SWITCH
CONTACTS CLOSE AND START THE MOTOR.
