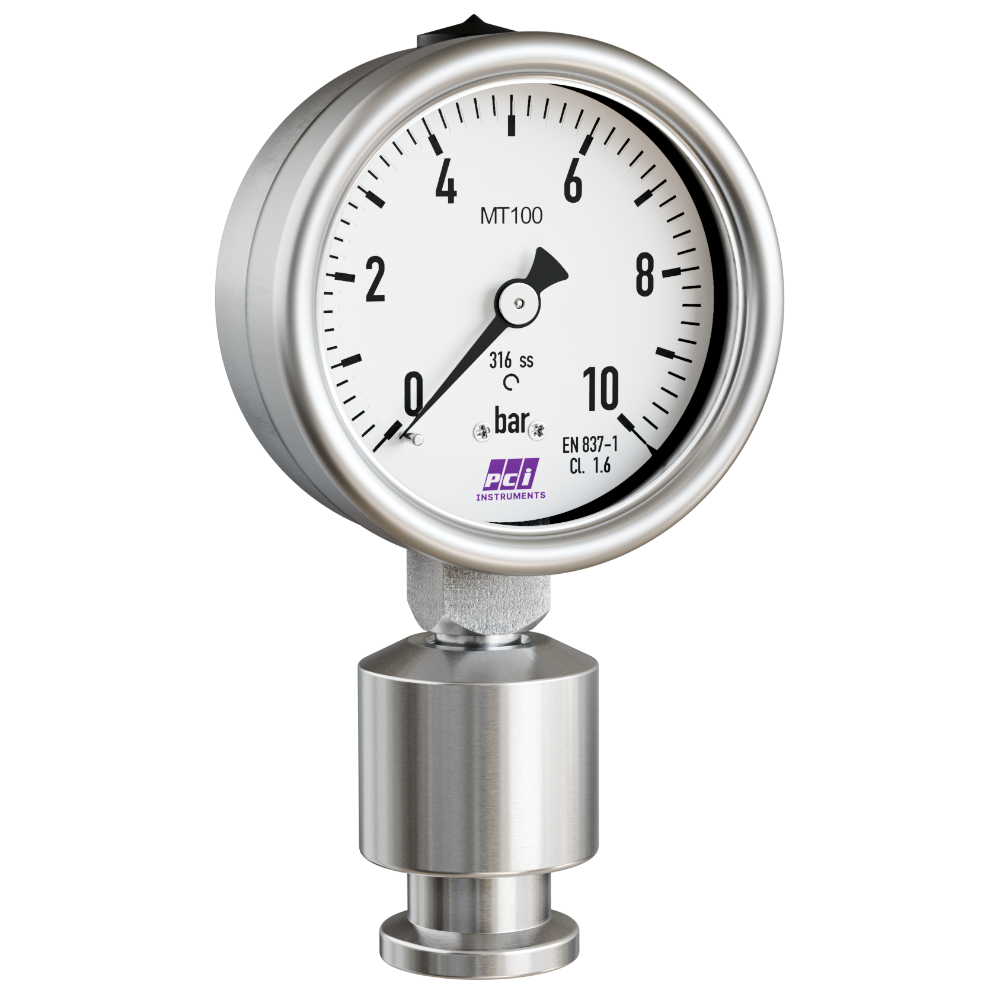

A pressure gauge for sanitary applications with a Tri-Clamp connection is designed for hygienic environments such as food, beverage, and pharmaceutical industries.
It ensures accurate pressure measurement while maintaining strict cleanliness standards.
The Tri-Clamp (Tri-Clover) connection allows quick and secure installation without the need for threaded fittings.
This design minimizes contamination risk and enables easy disassembly for cleaning and sterilization.
The gauge is typically made of high-grade stainless steel to resist corrosion and bacterial growth.
It features a smooth, crevice-free surface that meets sanitary and hygienic regulations.A sanitary pressure gauge with a Tri-Clover (Tri-Clamp) connection is a specialized instrument designed for hygienic applications in the food, beverage, dairy, and pharmaceutical industries. It features a flush-mounted diaphragm that prevents material buildup, allowing for easy cleaning (CIP/SIP).
Such gauges are compatible with Clean-in-Place (CIP) and Sterilize-in-Place (SIP) processes.
They provide reliable readings even in demanding conditions involving frequent washdowns.
The device is commonly used in pipelines, tanks, and processing equipment.
Overall, it ensures safe, accurate, and hygienic pressure monitoring in critical applications.
Ref. Standard EN-837
Dial 100 mm / 150 mm in Aluminium, white background,
black markings
Case SS304 / SS316 with bayonet bezel
Protection IP-68 (IS:13947 part I / IEC:60529)
Window Safety glass (Shatter proof / Toughened glass)
Diaphragm SS316L welded
Wetted Parts SS316L
Movement SS304 / SS316
Range Refer table
Connection Triclover / SMS union / IDF fitting
Filling Fluid Silicon oil / Glycerine / Food grade oil
Accuracy ±1% FSD (0.5% FSD on request)
Over range As per EN 837
Zero adjustment Micrometer Pointer
Blow out disc Provided (on top)
Temperature suitability Ambient (-)4°C to 60°C, Media 150°C
Temperature Effect Within ±0.4% FSD/10°C, when temperature changes from
reference temperature of 20°C (as per EN-837 standard)
Dial Size 4 inch / 100 mm
Brand WIKA
Pressure Range 0 ... 0.6 bar to 0 ... 16 bar
Use Process Industries
Display Type Analog
Pressure Type Gauge Pressure
Connection Type BSP
Connection Size 1/2 inch
Dial Type
