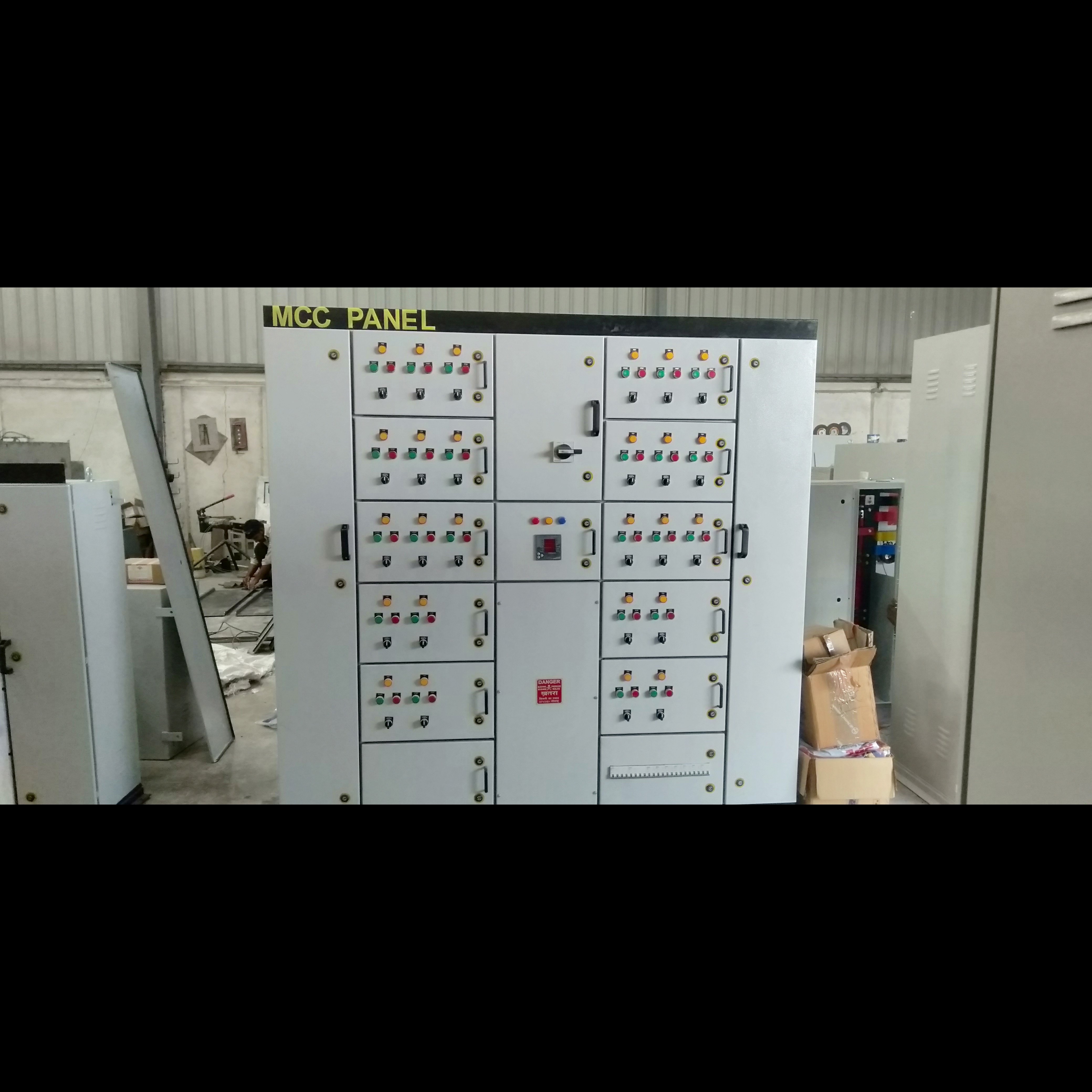

An MCC Panel (Motor Control Center) is used to control and operate multiple electric motors from a central location.
It contains components like contactors, overload relays, circuit breakers, and control devices.
MCC panels provide protection against overload, short circuit, and phase failure.
They allow easy starting, stopping, and monitoring of motors.
MCC panels are widely used in industries for efficient and safe motor management.
Operating Voltage: Up to 690V AC/800V AC (low voltage), 230V AC/DC control circuits.
Busbar Rating: Horizontal up to 7000A, Vertical up to 3200A.
Protection Level: IP52 (standard) to IP65 (heavy-duty dust/water protection).
Construction: Modular, floor-mounted, 14/16 SWG CRCA steel sheet with powder-coated paint (RAL 7032/7035).
Short Circuit Rating: Up to 100kA (common 50kA or 65kA for 1s).
Components: Air Circuit Breakers (ACB) or Molded Case Circuit Breakers (MCCB) for incoming; DOL/Star-Delta/VFD starters.
Standards: Conforms to IEC 61439, IS 8623, IS 13947.
