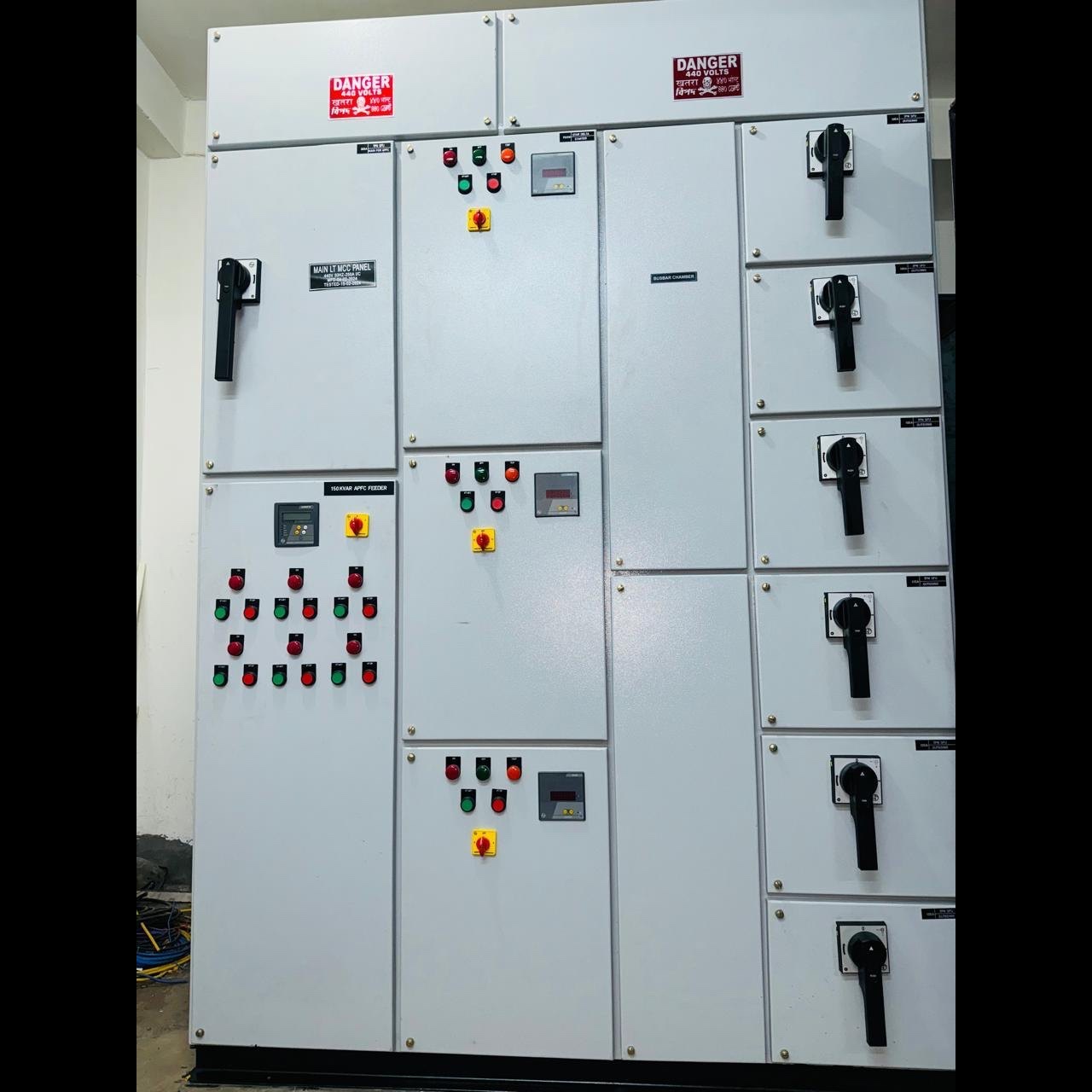

LT Control Panels (Low Tension Control Panels) are used to distribute and control electrical power at low voltage levels (up to 1000V).
They act as a central system for managing power supply in industries and buildings.
These panels include components like circuit breakers, contactors, relays, and meters.
They provide protection against overloads, short circuits, and electrical faults.
LT control panels ensure safe, efficient, and reliable operation of electrical systems.LT (Low Tension) Control Panels are essential electrical distribution boards designed to manage and distribute power at voltages below 1kV
Operating Voltage: 3-phase, 415/690V AC, 50 Hz.
Current Rating: Typically up to 5000A.
Insulation Voltage: 1000V.
Short Time Current: 65 kA for 1 sec.
Temperature Rise: 40°C above 45°C ambient.
Degree of Protection: Up to IP 54.
Standard Panel Dimensions:
Depth: 800 mm to 1600 mm.
Width: 500 mm to 1000 mm per feeder.
Height: Generally 2250 mm + 50 mm (base) + 15 mm anti-vibration pad.
Metal Sheet Thickness: 2mm/1.6mm.
