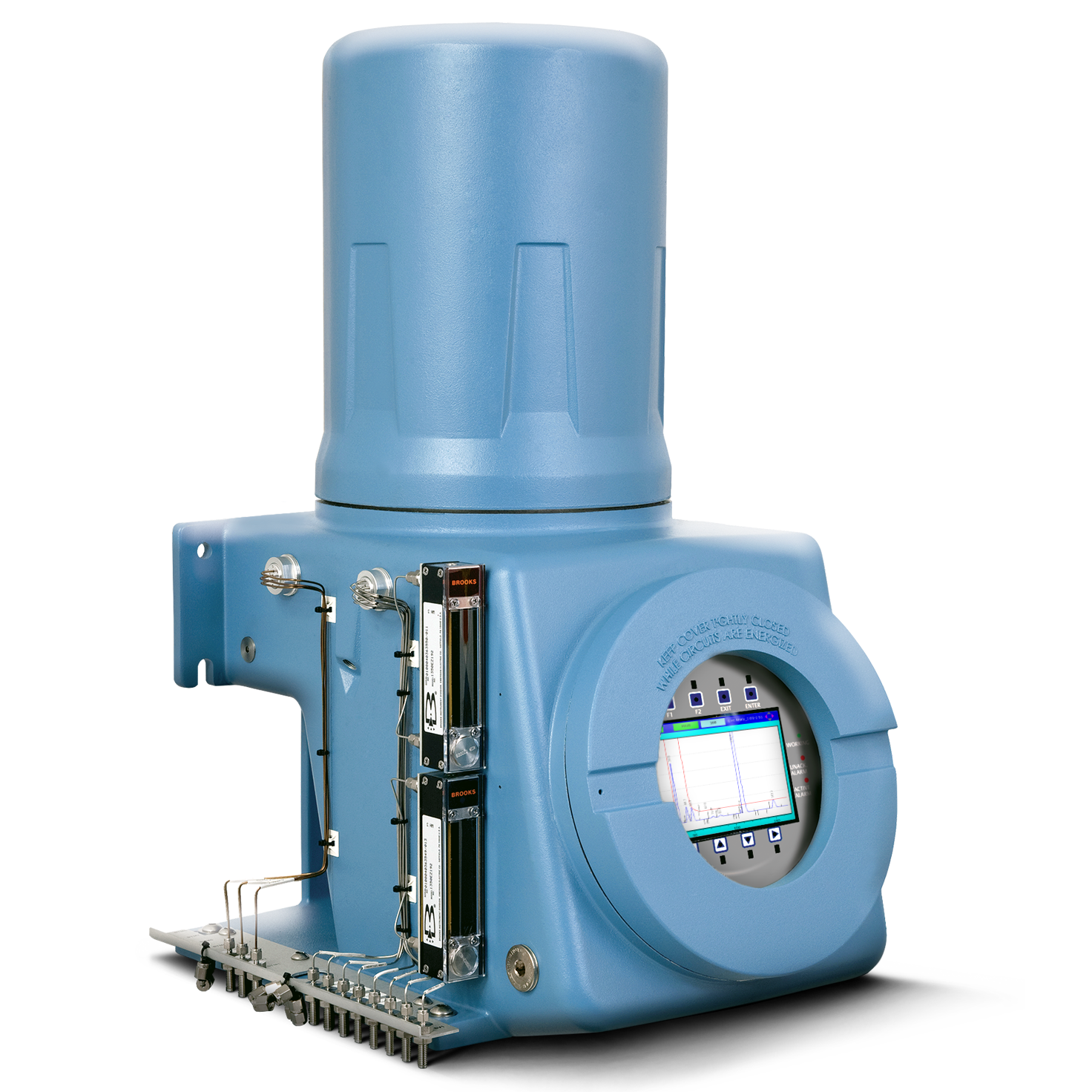

A Gas Chromatograph (GC) Analyzer is an analytical instrument used to separate and quantify components in volatile liquid or gaseous mixtures, commonly used for natural gas quality, emissions monitoring, and process control. It operates via an inlet, column, and detector (e.g., FID, TCD), typically using helium or nitrogen as a carrier gas.A Gas Chromatograph Analyzer is an analytical instrument used to separate and analyze compounds that can be vaporized without decomposition. It works by injecting a sample into a heated chamber where it is carried by an inert gas through a column. Inside the column, different components of the mixture travel at different speeds based on their chemical properties. This results in the separation of the mixture into individual compounds. A detector at the end of the column identifies and measures each component as it exits. The output is displayed as a chromatogram, showing peaks corresponding to different substances. It is widely used in industries like petrochemical, environmental monitoring, and pharmaceuticals. Gas chromatographs provide high accuracy and sensitivity for detecting trace compounds. They can analyze complex mixtures quickly and efficiently. Different types of detectors, such as flame ionization or thermal conductivity detectors, are used based on the application. Overall, it is an essential tool for qualitative and quantitative chemical analysis.
Capillary Flow Technology (CFT)
Yes (all CFT)
Detectors
4
Dimensions (WxDxH)
58 cm x 51 cm x 49 cm
Dual Simultaneous Injection
Yes
GC Detector MDLs
Premium
GC Diagnostics - Leak Check
Autonomous, hands-free
GC/MS Compatibility
Single quadrupoleTriple quadrupoleQ-TOF
Inlets
2
Maximum Temperature Ramp Rate
120 °C/min (120 V units are limited to 75 °C/min)
Operating Temperature Range
+4 above ambient to 450 °C-80 to 450 °C (with LN2 cryogenic cooling)-40 to 450 °C (with CO2 cryogenic cooling)
Oven Cool Down
450 °C to 50 °C in 4.0 minutes (22 °C ambient)3.5 minutes with oven insert accessory
Peak Area Repeatability
<0.5% RSD
Retention Time Repeatability
<0.008%
Typical Pressure Control
0.001 psi
Valves
10
