The FSM-6100 flow switch is designed to monitor liquid flow in industrial heat exchanger systems.
It ensures proper circulation of fluids to maintain efficient heat transfer.
The device activates or deactivates an electrical contact based on flow conditions.
It helps protect heat exchangers from damage caused by low or no flow situations.
The FSM-6100 is typically installed inline within the piping system.
It is suitable for use with water, oil, and other compatible industrial fluids.
The switch features a durable construction for reliable performance in harsh environments.

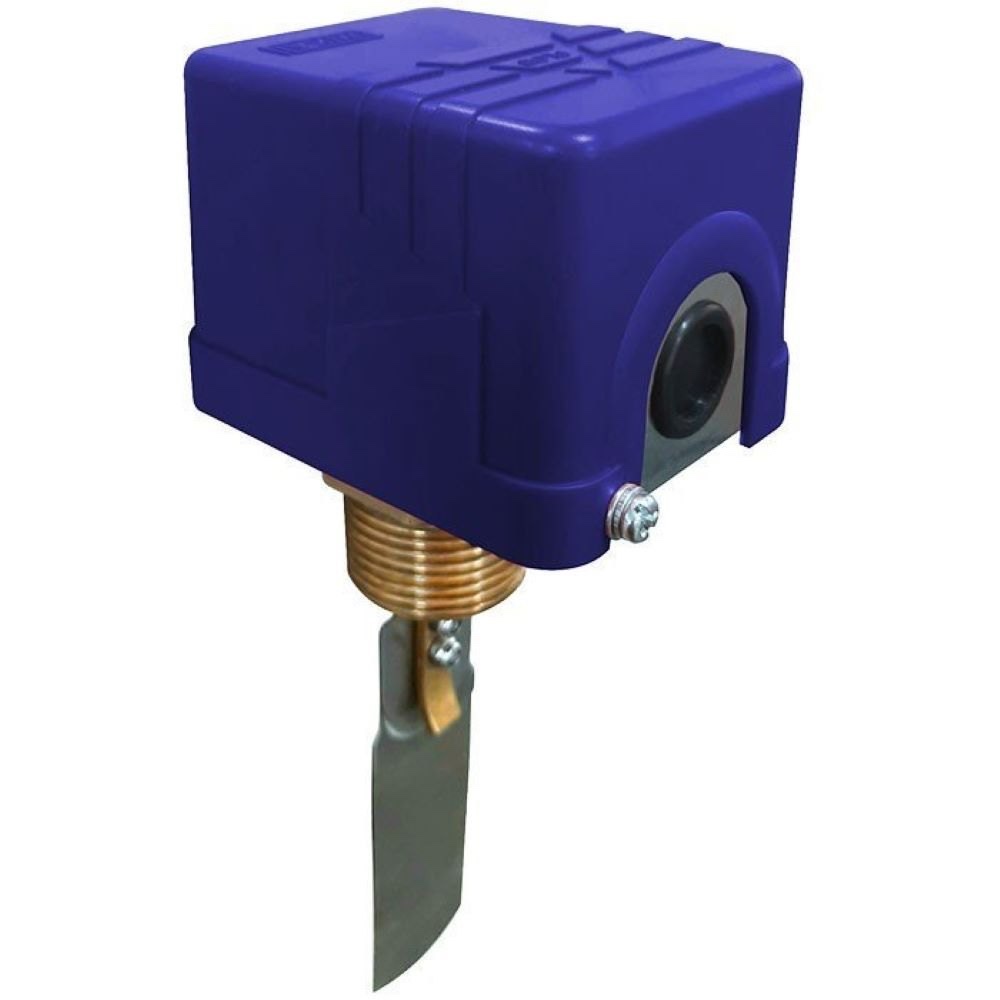

It offers adjustable setpoints to match specific flow requirements.The WIKA Model FSM-6100 is an electromechanical paddle-type flow switch designed for monitoring flow in industrial heat exchangers, chillers, and heaters. It provides reliable “no-flow“ detection for water and non-corrosive liquids, utilizing a durable stainless steel paddle, IP30 rating,
The FSM-6100 is commonly used in cooling systems, boilers, and process industries.
Overall, it enhances safety, efficiency, and operational control in heat exchanger applications.
Switch Type SPST
Flow Switch Type Water Flow Switch
Micro Switch Rating SETTING RANGE OF THE SWITCH POINTS
Inlet Pipe Diameter TYPE OF MEASURING ELEMENT PADDLE
Power Source SWITCHING FUNCTION 1 X SPDT
Surface Finish 2) THE RANGE OF FLOW RANGES, WITH PIPE SIZES FROM 25 ... 150 MM
IP Rating P30
APPLICATIONS
· HEATING, COOLING, AIR-CONDITIONING AND WATER TREATMENT PLANTS
· PUMPS AND DOSING SYSTEMS
· OPERATIONAL CONTROLS TO PREVENT SYSTEM FAILURES IN THE ABSENCE OF SUPPLY OF WATER OR LIQUID
