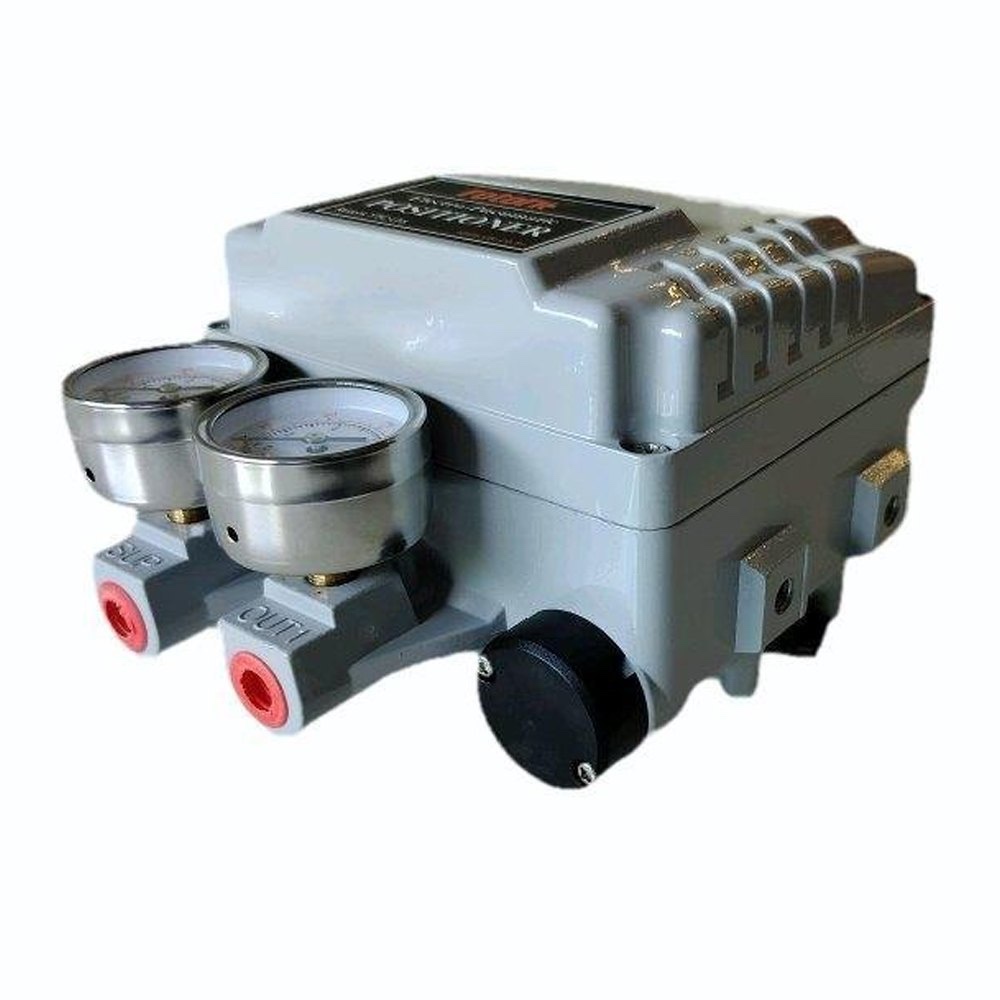

electro pneumatic valve positioner is a device used to control the position of pneumatic control valves.
It converts electrical input signals into pneumatic output signals.
The positioner ensures accurate valve positioning according to the control signal.
It is widely used in industrial automation and process control systems.
Electro pneumatic positioners improve the accuracy and response of control valves.
They help maintain stable flow, pressure, temperature, and level control.
The device receives standard electrical signals such as 4–20 mA.
Pneumatic actuators use the output air pressure to move the valve stem.
Feedback mechanisms continuously monitor valve position for precise control.
These positioners reduce hysteresis and improve system performance.
They are suitable for linear and rotary valve actuators.
Modern positioners support digital communication protocols like HART and Fieldbus.
Auto-calibration features simplify installation and maintenance.
Rugged construction allows operation in harsh industrial environments.
Explosion-proof and weatherproof models are available for hazardous areas.
Electro pneumatic positioners improve process efficiency and reliability.
They are commonly used in oil and gas, chemical, power, and water treatment industries.
Diagnostic functions help detect valve faults and maintenance needs.
Compact design and low air consumption increase operational efficiency.
Overall, electro pneumatic valve positioners provide accurate, reliable, and intelligent valve control solutions.
Positioner Type Smart
Input Signal 4 20 mA
Mounting Type Linear
Action Double acting
Enclosure Intrinsically safe
Supply Pressure 4 bar
Output Signal HART
Explosion Class Ex ia IIC
Input Signal: Standard 4–20 mA DC electrical input signal.
Output Pressure: Pneumatic output pressure suitable for valve actuator control.
Supply Air Pressure: Operates with clean and dry compressed air supply.
Control Action: Supports single-acting and double-acting actuators.
Communication Protocol: Compatible with HART, Fieldbus, or Modbus communication.
Position Feedback: Provides continuous valve position feedback for accurate control.
Accuracy: High positioning accuracy with low hysteresis and repeatability error.
Enclosure Protection: Available with weatherproof and explosion-proof housing.
Operating Temperature: Suitable for wide industrial temperature ranges.
Mounting Compatibility: Can be mounted on linear and rotary control valves.
