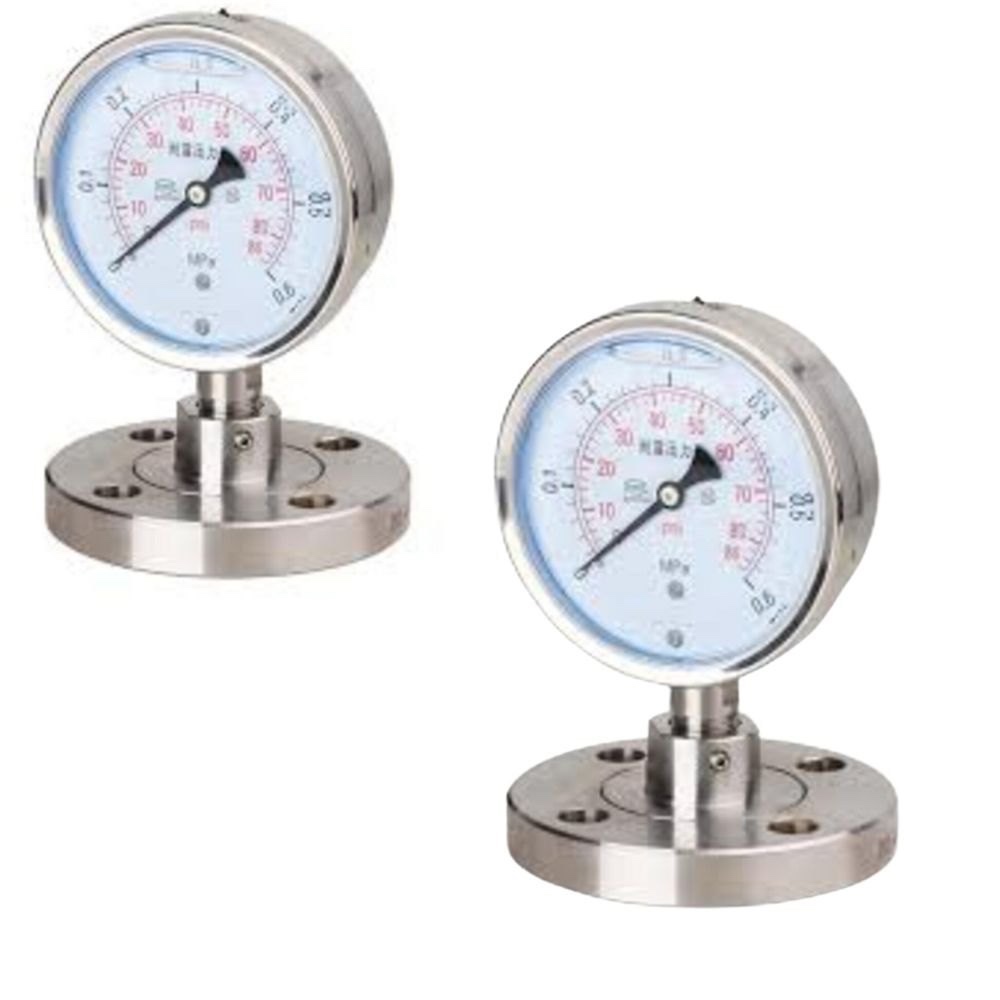

A diaphragm seal with flange connection pressure gauge is designed for measuring pressure in demanding industrial applications.
It uses a flexible diaphragm to isolate the measuring element from the process medium.
The flange connection ensures a strong, leak-proof installation on pipelines or vessels.
This design is ideal for handling corrosive, viscous, or high-temperature media.
The diaphragm transmits pressure through a fill fluid to the gauge for accurate readings.
It prevents clogging and protects the internal components from contamination.
These gauges are widely used in chemical, petrochemical, and food processing industries.
The flange-mounted design allows easy integration into existing systems.
They are available in various flange standards such as ANSI, DIN, and JIS.
The device offers high durability due to its robust construction materials.
It provides stable performance even under vibration and pressure fluctuations.
The sealed system reduces maintenance requirements and increases reliability.
It supports different pressure ranges and customized configurations.
The gauge ensures safe operation in hazardous and hygienic environments.
Overall, it is a dependable solution for accurate pressure measurement in critical processes.A diaphragm seal with a flange connection pressure gauge protects measuring instruments from aggressive, high-temperature, viscous, or contaminated media. It consists of a diaphragm welded or clamped between a top chamber (to the gauge) and a flanged bottom chamber (to the process). The flange connection allows for direct, secure mounting onto pipeline or vessel flanges.
Connection Size diaphragm gauge
Connection Type Flanged
Diaphragm Material SS316L
Material Stainless Steel
Body Material SS316
Pressure Rating 40 bar
Fill Fluid Silicone Oil
Usage/Application Industrial
Color Black
Size 4“ & 6 “
