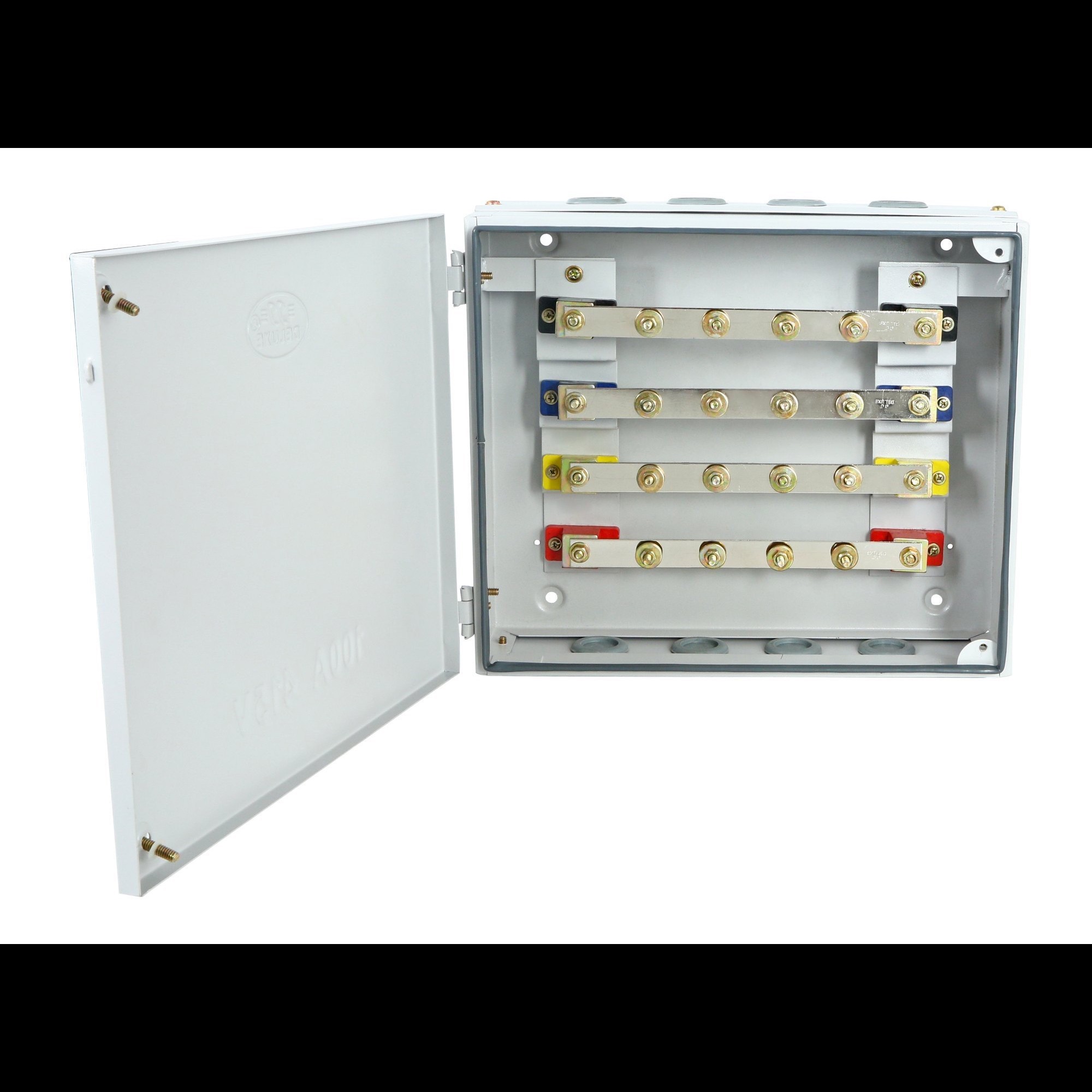

Busbar Chambers are enclosures used to house and protect busbars for electrical power distribution.
They provide a safe and organized way to transfer high current between circuits or equipment.
Busbar chambers are made of metal and offer protection against dust, moisture, and accidental contact.
They help in reducing wiring complexity and improving system reliability.
Busbar chambers are commonly used in industrial plants, substations, and large buildings.
Busbar chambers are metal-enclosed power distribution units, typically rated for 32A to 1000A, 415V-690V, and used for 3-phase, 4-bar configurations (TPN) in industrial settings
Current Ratings: Common ranges include 30A-600A, 100A-800A, or up to 1000A.
Voltage Rating: Generally 415V - 690V AC.
Construction Material: Electro-galvanized or CRC steel sheet (typically
1.0 mm thick), often beige (RAL-1013) or gray polyester powder-coated.
Configuration: Typically 3-Phase (4-bar/4-pole) with red, yellow, blue, and black labels.
Ways: 4, 6, or 8-way TPN (Three Pole + Neutral) systems.
Enclosure Rating: Often features IP-rated protection for industrial safety.
Connections: Provided with multiple connection points secured with bolts.
Mounting: Wall-mounted or pedestal-mounted configurations.
Cable Entry: Knockouts typically available for various cable sizes (e.g., $varnothing$32.5mm to $varnothing$77mm).
