The IPS 100 pressure switch is designed to monitor and control pressure in industrial applications.
It operates by detecting pressure variations and switching electrical contacts at set levels.
The device is commonly used in pumps, compressors, and fluid handling systems.
It helps prevent damage caused by excessive or insufficient pressure conditions.
The IPS 100 features a sturdy construction suitable for demanding environments.
It is compatible with air, gas, and liquid pressure systems.
The switch provides adjustable setpoints for accurate pressure control.
It ensures reliable and consistent performance over long periods of operation.
The IPS 100 pressure switch is easy to install and maintain.

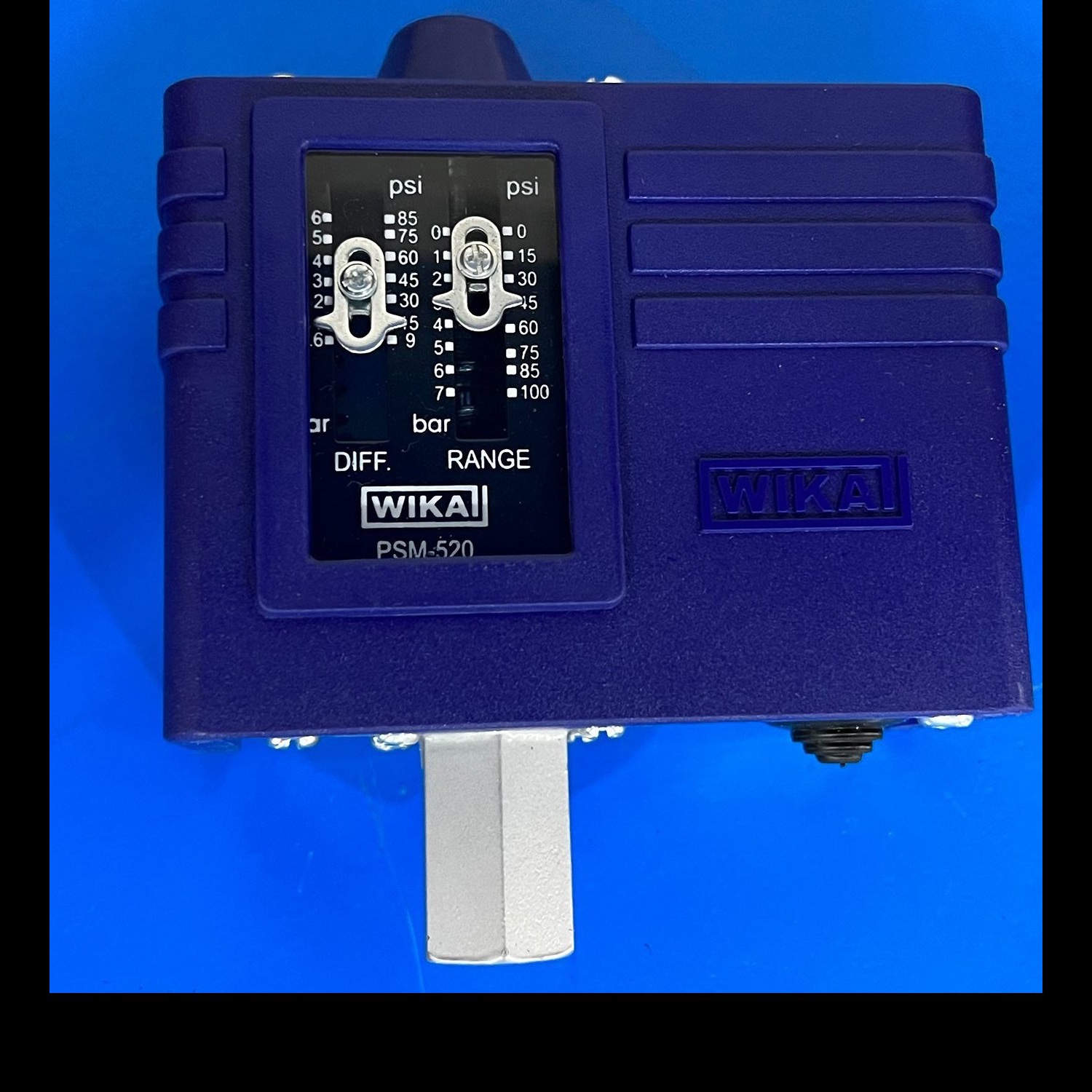

Overall, it improves safety, efficiency, and system reliability.The Indfos IPS-100 (also known as PSM-520-100) is a robust, industrial-grade electromechanical pressure switch designed to control pressure in oil, water, air, and steam systems. It features a 0-100 PSI pressure range, 0.6-6 bar adjustable differential, and an SPDT snap-acting switch suitable for pumps, compressors, and boilers.
Connection Type 1/4“ BSP (F)
Range 0 - 7 bar
Maximum Pressure 16 Bar
Adjustable Differential 0.6 - 6
Input Voltage 15A, 250V AC
Ambient Temperature 70°C
Process Temperature 100°C max
Accuracy ± 2% FSR
Sensing Element Phosphor Bronze Bellows
Commercials
Delivery Period 6 to 7 working days
Warranty 1 Year for manufacturing defects only.
