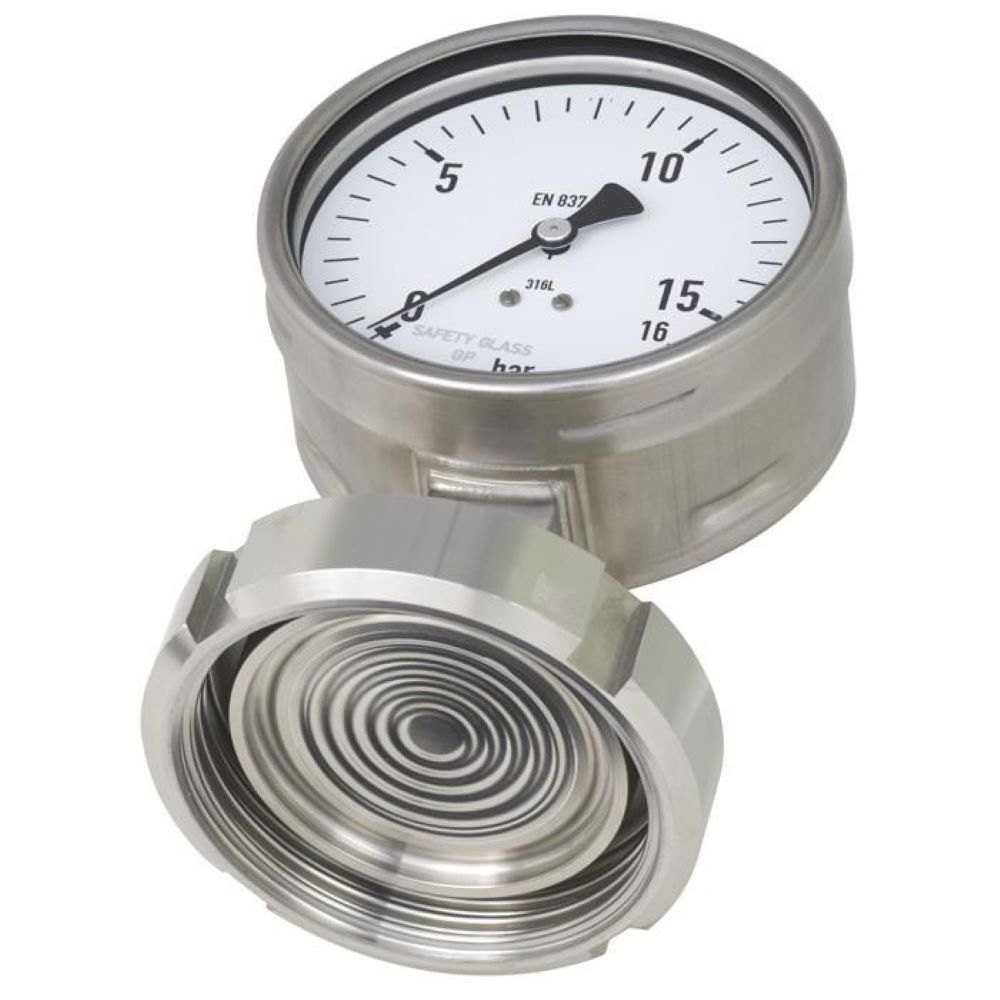

A homogenizer diaphragm seal pressure gauge is a specialized, heavy-duty instrument designed to measure extreme, pulsating pressures (up to 1, 600 bar) in dairy, food, and pharmaceutical applications. It features a sanitary, all-welded stainless steel diaphragm that prevents process media from entering the gauge, ensuring hygiene and durability.A homogeniser diaphragm seal pressure gauge is used to measure pressure in high-pressure homogenizing systems.
It combines a pressure gauge with a diaphragm seal to protect the sensing element from harsh fluids.
The diaphragm acts as a barrier between the process fluid and the gauge mechanism.
It is commonly used in dairy, pharmaceutical, food, and beverage industries.
The device ensures hygienic and contamination-free pressure measurement.
Stainless steel construction provides high corrosion resistance and durability.
The gauge can withstand pulsating and high-pressure conditions in homogenisers.
Diaphragm seals prevent clogging caused by viscous or sticky media.
It offers accurate and reliable pressure readings during operation.
The pressure gauge is available in different pressure ranges and dial sizes.
Sanitary connections make it suitable for clean-in-place (CIP) systems.
The instrument minimizes maintenance and increases equipment life.
It helps operators monitor system performance and maintain process safety.
The gauge is designed for vibration resistance and long-term stability.
Homogeniser diaphragm seal pressure gauges are essential for efficient and safe industrial processing.
Diaphragm Material SS316L
Pressure Range 0–10 bar
Process Connection Flange
Dial Size 4 inch / 100 mm
Use Process Industries
Display Type Analog
Wetted Material SS304
Pressure Type Gauge Pressure
Filling Fluid Silicone Oil
Brand WIKA
Pressure Range: 0 to 1000 bar / customized ranges available.
Dial Size: 100 mm or 150 mm standard diameter.
Wetted Parts Material: SS316 stainless steel diaphragm and process connection.
Case Material: SS304 stainless steel with weatherproof construction.
Accuracy: ±1% Full Scale (FS).
Connection Type: Tri-clamp / threaded sanitary process connection.
Filling Liquid: Glycerin-filled for vibration and pulsation resistance.
Operating Temperature: -10°C to 120°C process temperature.
Mounting Type: Bottom entry or back entry mounting options.
Protection Rating: IP65 or higher for dust and water resistance.
